4-20mA T click  (MIKROE-1296)

4-20mA T click (MIKROE-1296)

4-20mA T click  (MIKROE-1296)

Viac detailov

MIKROE-1296

19,50 € bez DPH
23,40 € s DPH

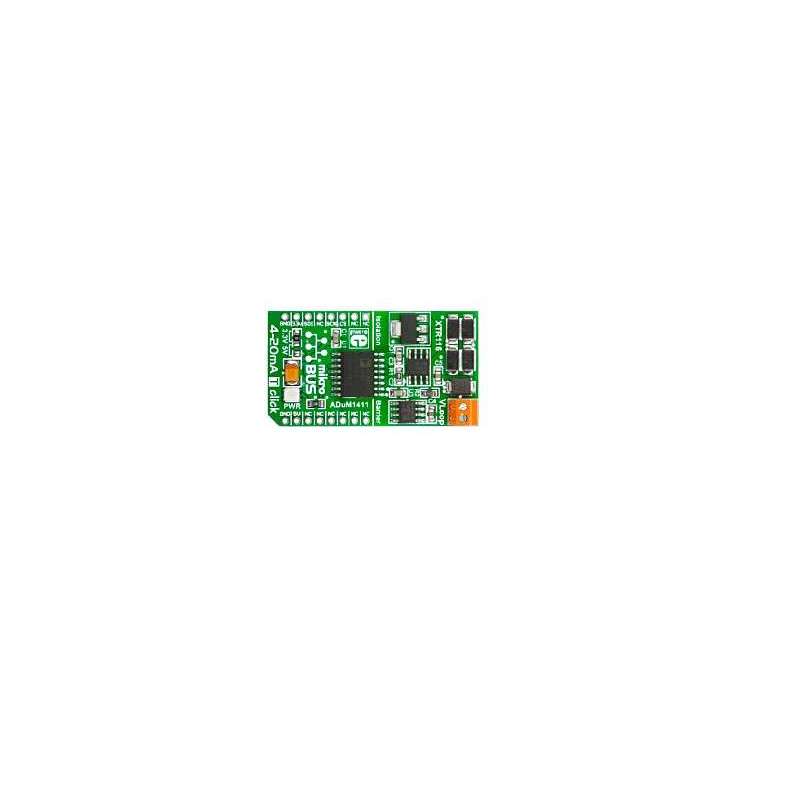

4-20mA T click  (MIKROE-1296)

4-20mA T Click™ is an add-on board in mikroBUS™ form factor. It’s a compact and easy solution for adding 4-to-20mA industry standard communication protocol to your design. It features ADuM1411Quad-chanel digital isolator, MCP4921 12-bit DAC as well as XTR116 4-20mA current loop transmitter. 4-20mA T Click™ communicates with target board microcontroller via three mikroBUS™ SPI lines (SDI, SCK, CS). Together with 4-20mA R Click™ this board forms a complete 4-to-20mA current loop standard. The board is designed to use 3.3V and 5V power supply. LED diode indicates the presence of power supply.

http://www.mikroe.com/click/4-20ma-t/
